While basic cardiac output (CO) assessment methods like the fundamental CO = HR x SV formula provide a conceptual basis, advanced critical care often requires more sophisticated cardiac output monitoring techniques. This article explores several advanced methods, including thermodilution cardiac output (via Pulmonary Artery Catheter/Swan-Ganz), pulse contour analysis cardiac output (e.g., PiCCO, FloTrac/Vigileo), and esophageal Doppler. These techniques are primarily aimed at an ICU audience and offer deeper hemodynamic insights. Some are also discussed on our thermodilution calculator page.

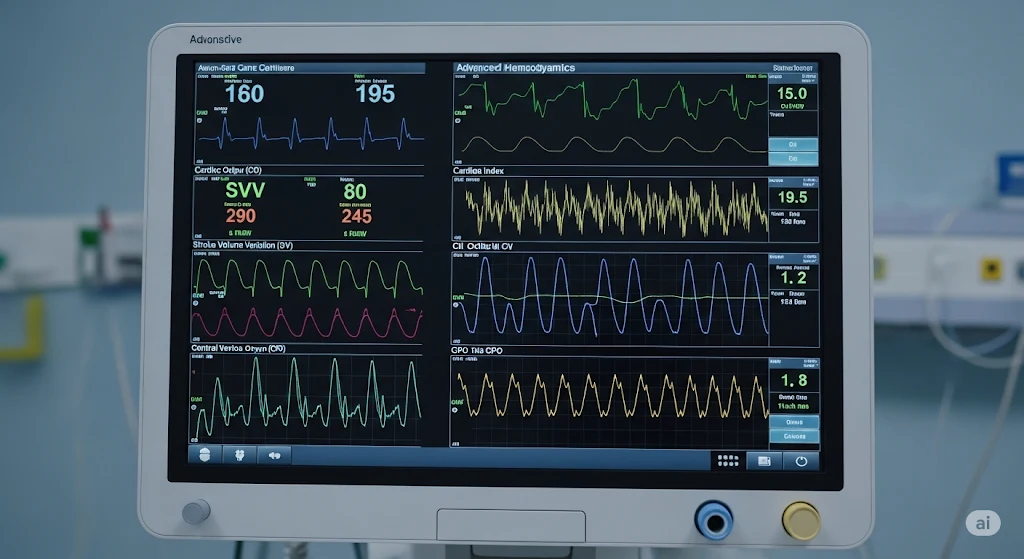

Advanced Cardiac Output Monitoring Technique

1. Pulmonary Artery Catheter (PAC) / Swan-Ganz Catheter

The PAC, often called a Swan-Ganz catheter, has long been a cornerstone of advanced hemodynamic monitoring, though its use has become more selective.

  • Method: Thermodilution Cardiac Output
    • Bolus Thermodilution: Involves injecting a known volume of cold saline into the right atrium via the PAC’s proximal port. A thermistor at the PAC tip in the pulmonary artery measures the temperature change over time. CO is calculated from the area under the temperature-time curve (Stewart-Hamilton equation). Our thermodilution CO page details this.
    • Continuous Cardiac Output (CCO): Some PACs have a thermal filament that emits small heat pulses. The downstream temperature changes are continuously analyzed to provide near-real-time CO.
  • Other Parameters Measured/Derived:
    • Pulmonary Artery Pressure (PAP)
    • Pulmonary Capillary Wedge Pressure (PCWP) – an estimate of left atrial pressure/LV preload
    • Central Venous Pressure (CVP) – an estimate of RV preload
    • Mixed Venous Oxygen Saturation (SvO2) – reflects global oxygen extraction
    • Systemic Vascular Resistance (SVR) and Pulmonary Vascular Resistance (PVR) can be calculated.
  • Audience/Use: Complex cardiogenic shock, severe ARDS, right heart failure, pulmonary hypertension diagnosis.
  • Pros: Comprehensive data, direct pressure measurements, SvO2.
  • Cons: Invasive (risks of arrhythmias, PA rupture, infection), interpretation can be complex, operator dependent for bolus CO.

2. Arterial Pulse Contour Analysis Cardiac Output

These minimally invasive techniques estimate CO by analyzing the arterial pressure waveform obtained from a standard arterial line. They differ by calibration requirements.

a) Calibrated Systems (e.g., PiCCO, LiDCOplus)

  • Principle: These systems use an independent CO measurement (often transpulmonary thermodilution for PiCCO, or lithium dilution for LiDCO) to calibrate the pulse contour algorithm. The algorithm then continuously estimates CO based on arterial waveform characteristics (e.g., area under the systolic portion of the curve, arterial compliance).
  • Transpulmonary Thermodilution (PiCCO): Similar to PAC thermodilution but indicator (cold saline) injected centrally (CVC) and detected by a thermistor in a femoral/axillary arterial line. Provides CO, Global End-Diastolic Volume (GEDV – preload marker), Extravascular Lung Water (EVLW – pulmonary edema marker).
  • Pros: Less invasive than PAC, provides continuous CO (post-calibration) and additional volumetric parameters (GEDV, EVLW).
  • Cons: Requires central venous and arterial access, periodic recalibration needed, accuracy affected by severe arrhythmias or significant changes in vascular tone.

b) Uncalibrated Systems (e.g., FloTrac/Vigileo, ProAQT/PulsioFlex)

  • Principle: These systems use algorithms based on patient demographic data (age, sex, height, weight) and statistical analysis of the arterial waveform morphology (e.g., standard deviation of pulse pressure) to estimate stroke volume without external calibration. SV × HR gives CO.
  • Pros: Uses existing arterial line, no separate calibration injectate, easy to set up, provides continuous CO and parameters like Stroke Volume Variation (SVV) or Pulse Pressure Variation (PPV) to predict fluid responsiveness in mechanically ventilated patients.
  • Cons: Accuracy can be less reliable than calibrated systems, especially in hyperdynamic states, severe vasoplegia, or with frequent arrhythmias. Performance may degrade with poor arterial signal quality.

3. Esophageal Doppler Monitoring (EDM)

  • Principle: A Doppler ultrasound probe is placed in the esophagus to measure blood flow velocity in the descending thoracic aorta. Assuming a certain proportion of CO flows through the descending aorta and knowing aortic diameter (often nomogram-based), CO is estimated.
  • Parameters: Provides CO, Stroke Distance (VTI equivalent), Flow Time Corrected (FTc – indicator of preload).
  • Audience/Use: Primarily perioperative settings (especially major surgery) for goal-directed fluid therapy, also some ICU applications.
  • Pros: Minimally invasive (probe inserted like an NG tube), provides real-time data, good for tracking rapid changes.
  • Cons: Probe position critical for accuracy, may be uncomfortable for awake patients, less accurate with aortic disease or significant changes in aortic diameter. Measures descending aortic flow, not total LV output (assumes constant distribution).

4. Bioreactance / Bioimpedance

  • Principle: Non-invasive methods using skin electrodes to pass a small electrical current across the thorax. Changes in transthoracic impedance or electrical reactance during the cardiac cycle (related to aortic blood flow and volume changes) are analyzed to estimate stroke volume and CO. Examples: NICOM (bioreactance), various bioimpedance devices.
  • Pros: Completely non-invasive, easy to apply, continuous monitoring.
  • Cons: Accuracy can be affected by patient movement, fluid shifts (e.g., pulmonary edema, pleural effusions), obesity, and electrical interference. Still debated in terms of reliability in critically ill ICU patients compared to invasive standards. Many studies on this can be found in journals like Intensive Care Medicine.

Comparison and ICU Applications

The choice of advanced CO monitoring in the ICU depends on the clinical question, patient stability, required accuracy, invasiveness tolerated, and available expertise. Often, a progression from less to more invasive monitoring occurs as patient acuity increases. Understanding the information from clinical significance of CO helps in selecting the right tool.

  • For complex shock states or RV failure: PAC might be chosen for comprehensive data.
  • For guiding fluid therapy and vasoactive drugs in many ICU patients: Calibrated or uncalibrated pulse contour methods are common.
  • For perioperative goal-directed therapy: Esophageal Doppler or uncalibrated pulse contour often used.

It’s crucial to understand the limitations of each device and interpret data within the full clinical context. No single device is perfect for all situations. For more on the Fick method, an invasive benchmark, see the Fick calculator. A broader comparison of calculator methods is also available.

Leading critical care societies like SCCM and ESICM publish guidelines and consensus statements on hemodynamic monitoring, which are invaluable resources for clinicians.
